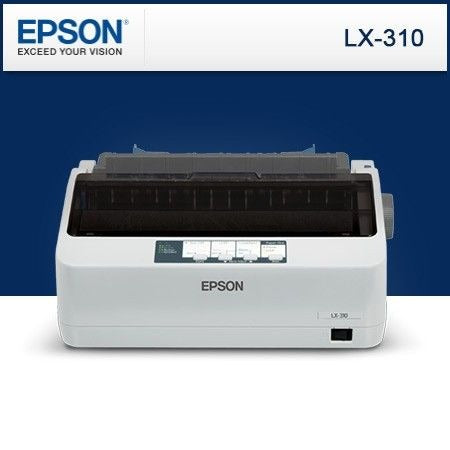

EPSON LX-310 Dot Matrix Printer
Printing Technology:
Print Method:Impact dot matrixControl Panel:4 switches and 5 LEDsPrint Direction:Bi-direction with logic seekingNumber of Pins in Head:9 pinsControl Code:ESC/P and IBM PPDS emulationNumber of Pins:9
Print Speed:
High Speed Draft:(10 / 12 / 15 cpi): 347 / 357 / 390 cps
(Condensed, 17 / 20 cpi): 383 / 298 cpsDraft:(10 / 12 / 15 cpi): 260 / 312 / 223 cps
(Condensed, 17 / 20 cpi): 222 / 260 cps
(Emphasized, 10 cpi): 130 cpsNLQ:(10 / 12 / 15 / 17 / 20 cpi): 65 / 78 / 55 / 47 / 56 cps
Reliability:
Printhead Life:Approx. 400 million strokes/wireMean Print Volume Between Failure (MVBF):Approx. 20 million lines (Except print head)Mean Time Between Failure (MTBF):Approx. 10,000 POH (25% Duty)
Print Characteristics:
Character Sets:Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portugese), PC861 (Icelandic), PC863 (Canadian French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts:Epson Draft: 10, 12, 15 cpi; Epson Roman & Sans Serif: 10, 12, 15 cpi, Proportional, Epson OCR-BBarcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Paper Path:
Manual Insertion:Rear in, Top outPush Tractor:Rear in, Top out
Paper Media:
Cut Sheet (Single Sheet):Length: 100 ~ 364mm (3.9 ~ 14.3")
Width: 100 ~ 257mm (3.9 ~ 10.1")
Thickness: 0.065 ~ 0.14mm (0.0025 ~ 0.0055")Cut Sheet (Multi-part Forms):Length: 100 ~ 364mm (3.9 ~ 14.3")
Width: 100 ~ 257mm (3.9 ~ 10.1")
Thickness: 0.12 ~ 0.39mm (0.0047 ~ 0.015") (Total)Continuous Paper (Single Sheet / Multi-part):Length: 101.6 ~ 558.8mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0mm 4.0 ~ 10.0")
Thickness: 0.065 ~ 0.39mm (0.0025 ~ 0.015") (Total)Envelope (No.6):Length: 92mm (3.6")
Width: 165mm (6.5")
Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0,0205") (Total)Envelope (No.10):Length: 105mm (4.1")
Width: 241mm (9.5")
Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205") (Total)Roll Paper:Width: 216mm (8.5")
Thickness: 0.07 ~ 0.09mm (0.0028 ~ 0.0035")
Supported OS and Applications:
Supported OS:Microsoft® Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10
Dimensions and Weight:
Dimensions (W x D x H):362 x 275 x 154 mmWeight:Approx. 4.1 kg
Consumables:
Ribbon Cartridge Black:Ribbon Life: Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character)
Environmental Conditions (Operating):
Temperature:5 ~ 35°CHumidty:10 ~ 80 % RH
Acoustic Noise:
Acoustic Noise:Approx. 53 dB(A) (ISO 7779 pattern)
Input Data Buffer:
Input Data Buffer:128KB
Interface:
Standard:Bi-directional parallel (IEEE-1284 nibble mode supported)
USB 2.0 Full-Speed
Serial
Ribbon Cartridge:
Standard:Fabric Ribbon Cartridge (Black) - C13S015632Ribbon Life:Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character
